Harber Communication Hardware Industry MIM Metal Parts Projects

Project Time: March 2022

Industry: Communication hardware industry

Material used: 17-4PH

Qty: 500,000pcs per year

Client Introduce: Listed as a Fortune 500 companies, the company is one of the world's leading medical technology companies offering a diverse array of innovative products and services in Orthopaedics, Medical, Surgical, Neurotechnology and Spine that help improve patient and hospital outcomes.

Case background

When we saw this drawing from the investment casting manufacturer, I knew we had a chance. Because the investment casting process is not good at making this product, they have tried it for half a year. This product needs to be perfectly matched with another product, with very high precision requirements and very little impact on appearance deformation. Then the final customer called us, we say we could try.

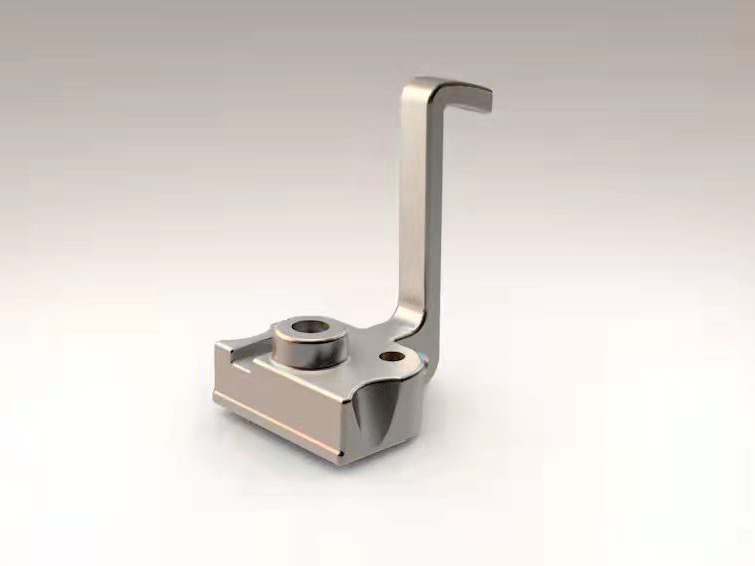

This part used17-4PH with high physical properties with 35mm*33mm*47mm, weight 15.7g. Harber MIM delivery the ripe experiences and solution.

Solution

17-4PH material is suitable for many industries, especially the medical industry. The customer required one material have hardness about 30-35HRC and no rusty. Harber MIM recommend 17-4PH. Due to the strange shape of the product, there are still many holes and long hooks, we developed a tooling with 2 cavities to control the quality well. It need at least 3 steps to reshape and correct the profile. We made a gauge to test the correction one by one. Please see below picture

It is a good choice to passivate the surface of this material to protect the product.
